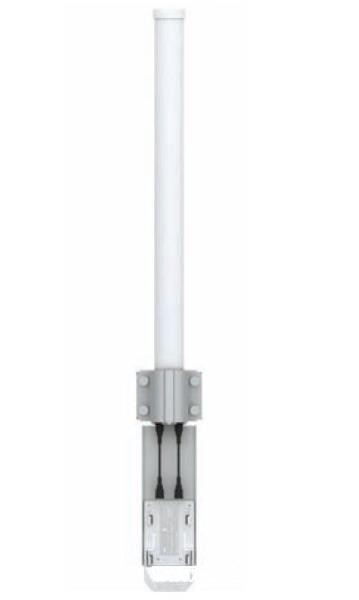

AirMax Omni is a Carrier Class omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios.
Utilize AirMax Technology
AirMax Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Seamless Rocket Integration
AirMax Omni has an integrated mount that lets you securely snap Rocket M (sold separately) into place.
Powerful AirOS Software
AirOS is an intuitive, versatile, and highly developed Ubiquiti firmware technology that is included on Rocket M units.
2x2 MIMO
All versions of AirMax Omni feature 2x2 MIMO to help it achieve Carrier Class speed and performance.
Carrier Class Omni
AirMax Omni is a Carrier Class omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (sold separately).
Rocket M combines the “brains” in one robust unit; pair Rocket M with AirMax Omni to create powerful 360° omnidirectional coverage. This seamless integration gives network architects unparalleled flexibility and convenience.
Rocket Mount Included
AirMax Omni antennas all come with a universal Rocket M mount for easy installation.
RF Cables Included
Rugged, weatherproof RF cables are included with AirMax Omni antennas.
| Frequency | 5.45 - 5.85 GHz |
|---|---|
| Gain | 13 dBi |
| Polarization | Dual Linier |
| Downtilt | 2° |
| Elevation Beamwidth | 7° |
| Cross-pol Isolation | 25 dB min |
| Dimension | 158 x 98 x 834 mm |
| Wind Survivability | 125 mph |
| Max VSWR | 1.5:1 |
| Mounting | Universal pole mount |
